Otočné odpínače

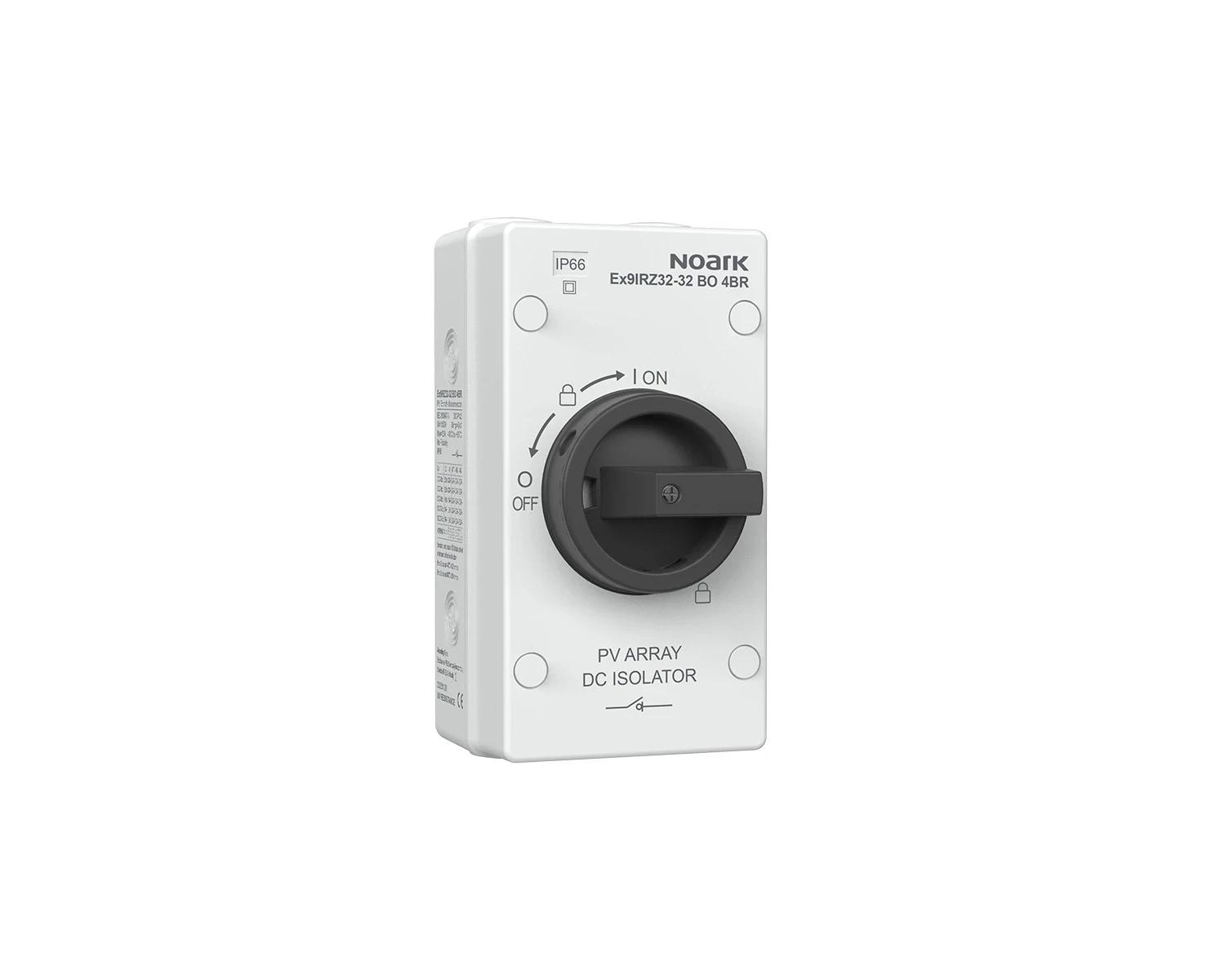

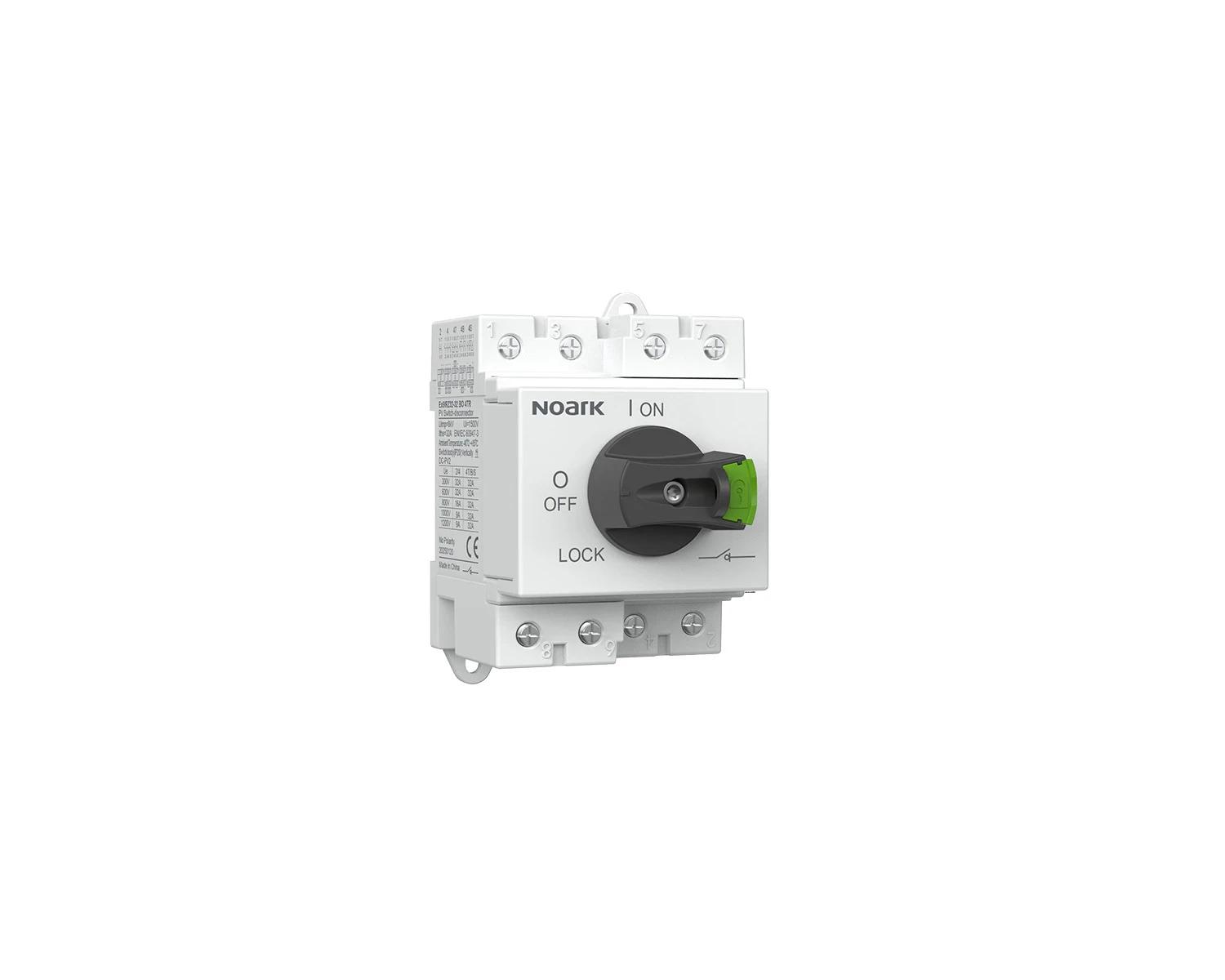

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

The Ex9IRZ32 is a manually operated DC Rotary Switch Disconnector designed for isolating and switching photovoltaic circuits. It is suitable for applications up to 1200 V DC and rated currents up to 32 A. The device can disconnect 1 to 2 MPPT lines simultaneously and is ideal for infrequent switching operations such as maintenance or system upgrades in solar installations. Complies with EN IEC 60947-3 and conforms to utilization categories DC-PV1 and DC-PV2, ensuring reliable operation under demanding PV conditions including bidirectional current flow and high overcurrents in parallel-connected strings. It features silver-plated contacts for reliable conductivity, arc suppression time below 3 ms, and degree of protection IP66. The Ex9IRZ32 is available in DIN-rail mounted and enclosed (IP66) box versions, with 4-pole configuration and optional locking in the OFF position. Connection options include a standard 4-pole version without designation, and variants with clearly defined input/output directions: 4T – top input and output, 4B – bottom input and output, 4S – top input and bottom output

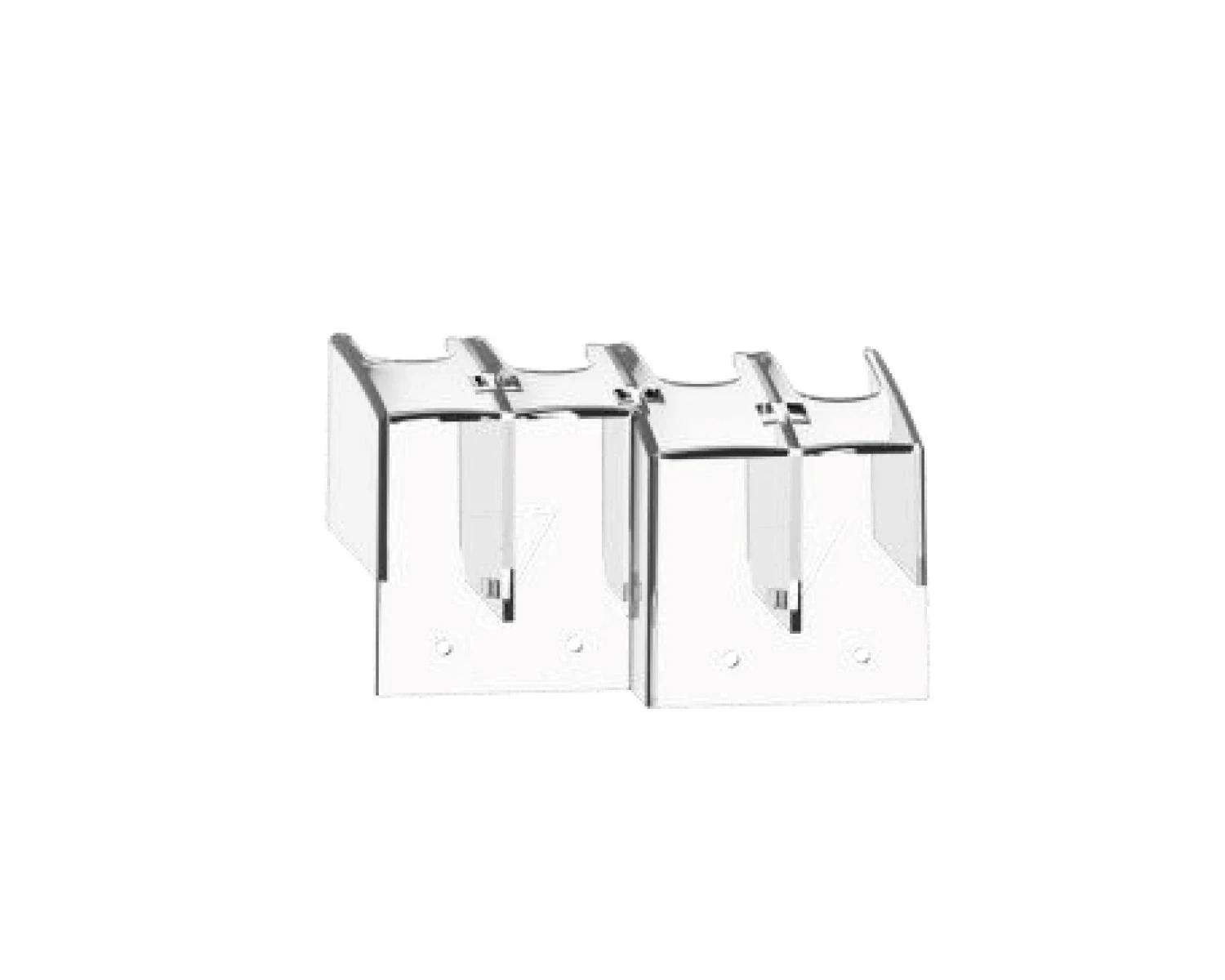

Terminal cover for Ex9IRZ32

Ex9IR50 DC Rotary Switch Disconnector is an electrical safety device that manually disconnects itself from applications in such as Photovoltaic and energy storage systems. In PV applications this disconnector is used for manually isolate solar panels for maintenance, installation or repair purposes. Utilization category is DC-PV2, that means connecting and disconnecting PV circuits where signifi cant over-currents may prevail and where current fl ow can be in both directions; for example, where several strings are connected in parallel and to the same inverter, or, one or more strings with a battery. Rated current is up to 50A for 1100V DC and 26A for 1500V DC in solutions from 2 layers up to 8 layers.

Ex9IR50 DC Rotary Switch Disconnector is an electrical safety device that manually disconnects itself from applications in such as Photovoltaic and energy storage systems. In PV applications this disconnector is used for manually isolate solar panels for maintenance, installation or repair purposes. Utilization category is DC-PV2, that means connecting and disconnecting PV circuits where signifi cant over-currents may prevail and where current fl ow can be in both directions; for example, where several strings are connected in parallel and to the same inverter, or, one or more strings with a battery. Rated current is up to 50A for 1100V DC and 26A for 1500V DC in solutions from 2 layers up to 8 layers.

Ex9IR50 DC Rotary Switch Disconnector is an electrical safety device that manually disconnects itself from applications in such as Photovoltaic and energy storage systems. In PV applications this disconnector is used for manually isolate solar panels for maintenance, installation or repair purposes. Utilization category is DC-PV2, that means connecting and disconnecting PV circuits where signifi cant over-currents may prevail and where current fl ow can be in both directions; for example, where several strings are connected in parallel and to the same inverter, or, one or more strings with a battery. Rated current is up to 50A for 1100V DC and 26A for 1500V DC in solutions from 2 layers up to 8 layers.

Ex9IR50 DC Rotary Switch Disconnector is an electrical safety device that manually disconnects itself from applications in such as Photovoltaic and energy storage systems. In PV applications this disconnector is used for manually isolate solar panels for maintenance, installation or repair purposes. Utilization category is DC-PV2, that means connecting and disconnecting PV circuits where signifi cant over-currents may prevail and where current fl ow can be in both directions; for example, where several strings are connected in parallel and to the same inverter, or, one or more strings with a battery. Rated current is up to 50A for 1100V DC and 26A for 1500V DC in solutions from 2 layers up to 8 layers.

Ex9IR50 DC Rotary Switch Disconnector is an electrical safety device that manually disconnects itself from applications in such as Photovoltaic and energy storage systems. In PV applications this disconnector is used for manually isolate solar panels for maintenance, installation or repair purposes. Utilization category is DC-PV2, that means connecting and disconnecting PV circuits where signifi cant over-currents may prevail and where current fl ow can be in both directions; for example, where several strings are connected in parallel and to the same inverter, or, one or more strings with a battery. Rated current is up to 50A for 1100V DC and 26A for 1500V DC in solutions from 2 layers up to 8 layers.

Ex9IR50 DC Rotary Switch Disconnector is an electrical safety device that manually disconnects itself from applications in such as Photovoltaic and energy storage systems. In PV applications this disconnector is used for manually isolate solar panels for maintenance, installation or repair purposes. Utilization category is DC-PV2, that means connecting and disconnecting PV circuits where signifi cant over-currents may prevail and where current fl ow can be in both directions; for example, where several strings are connected in parallel and to the same inverter, or, one or more strings with a battery. Rated current is up to 50A for 1100V DC and 26A for 1500V DC in solutions from 2 layers up to 8 layers.
