- Consumer unit PMF-MM 12

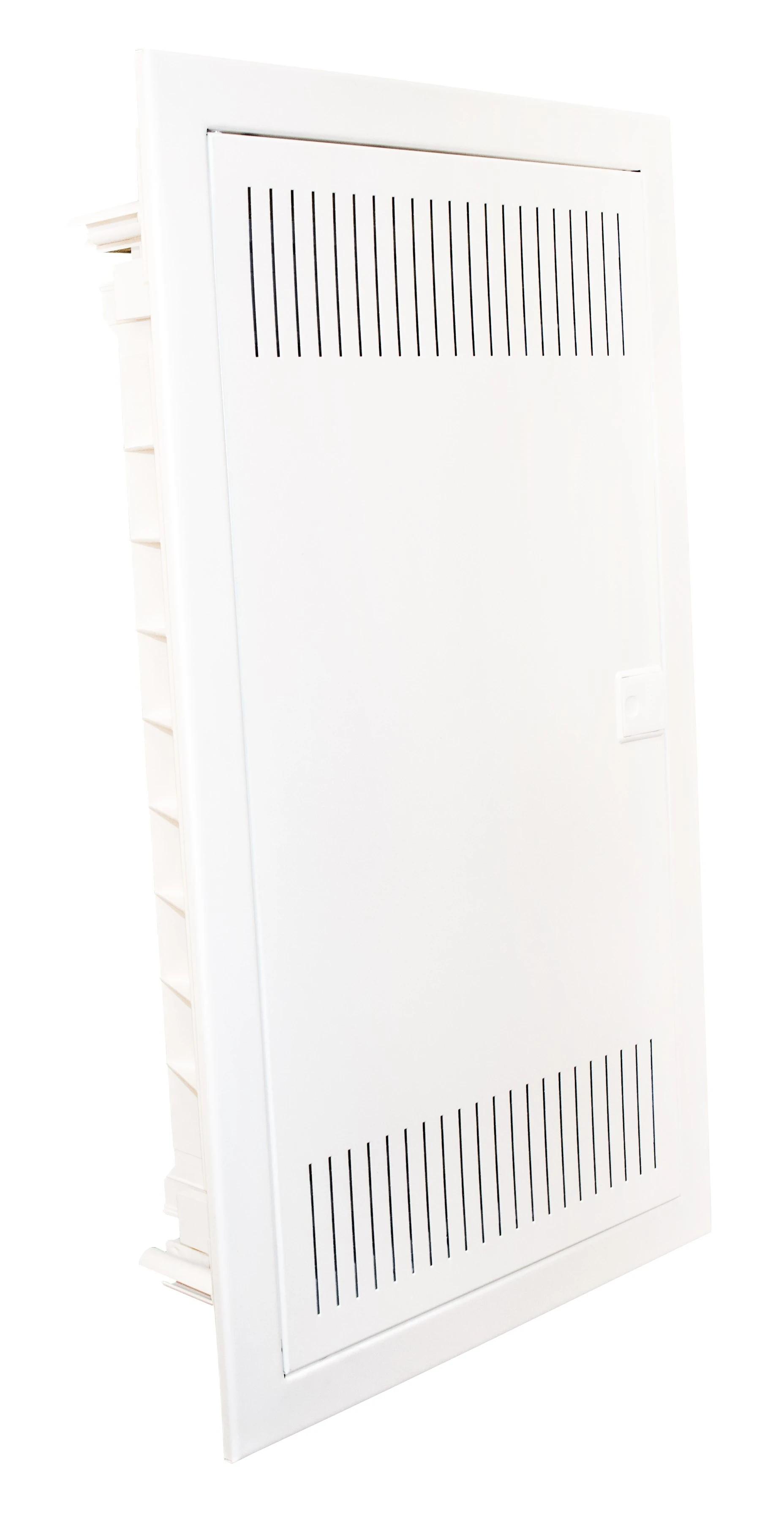

Consumer unit PMF-MM 12
107264
8592765072641
Consumer units PMF and PMF- MM are intended mainly for domestic applications. Theirs design is suitable for flush mounting. Dual fixing system allows using also for hollow walls. Tested with glow wire test at 850°C. The height-adjustable front metal frame allows to compensate wall surface imperfections. The units are available in versions from 1 up to 5 mounting plates. Degree of protection is IP40 for PMF and IP30 for PMF-MM, degree of protection against mechanical impact IK06. Scope of delivery consists of enclosure, metal frame with perforated door, mounting plate, mounting material and instructions.
| Mounting method | Hollow wall |
| Number of rows | 1 |
| Width in number of modular spacings | 12 |
| Type of cover | Door |
| Cover model | With notch |
| Transparent cover/door | Ne |
| Material housing | Steel |
| Height [mm] | 317 |
| Width [mm] | 346 |
| Depth [mm] | 88 |
| Built-in depth [mm] | 88 |
| DIN-rail | Ano |
| With mounting plate | Ano |
| Extension possible | Ano |
| EMC-version | Ne |
| Colour | White |
| RAL-number | 9016 |
| Degree of protection (IP) | IP30 |
| With lock | Ne |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W] | 31 |
