BBUK 4LN 10 M54
117499
8592765174994

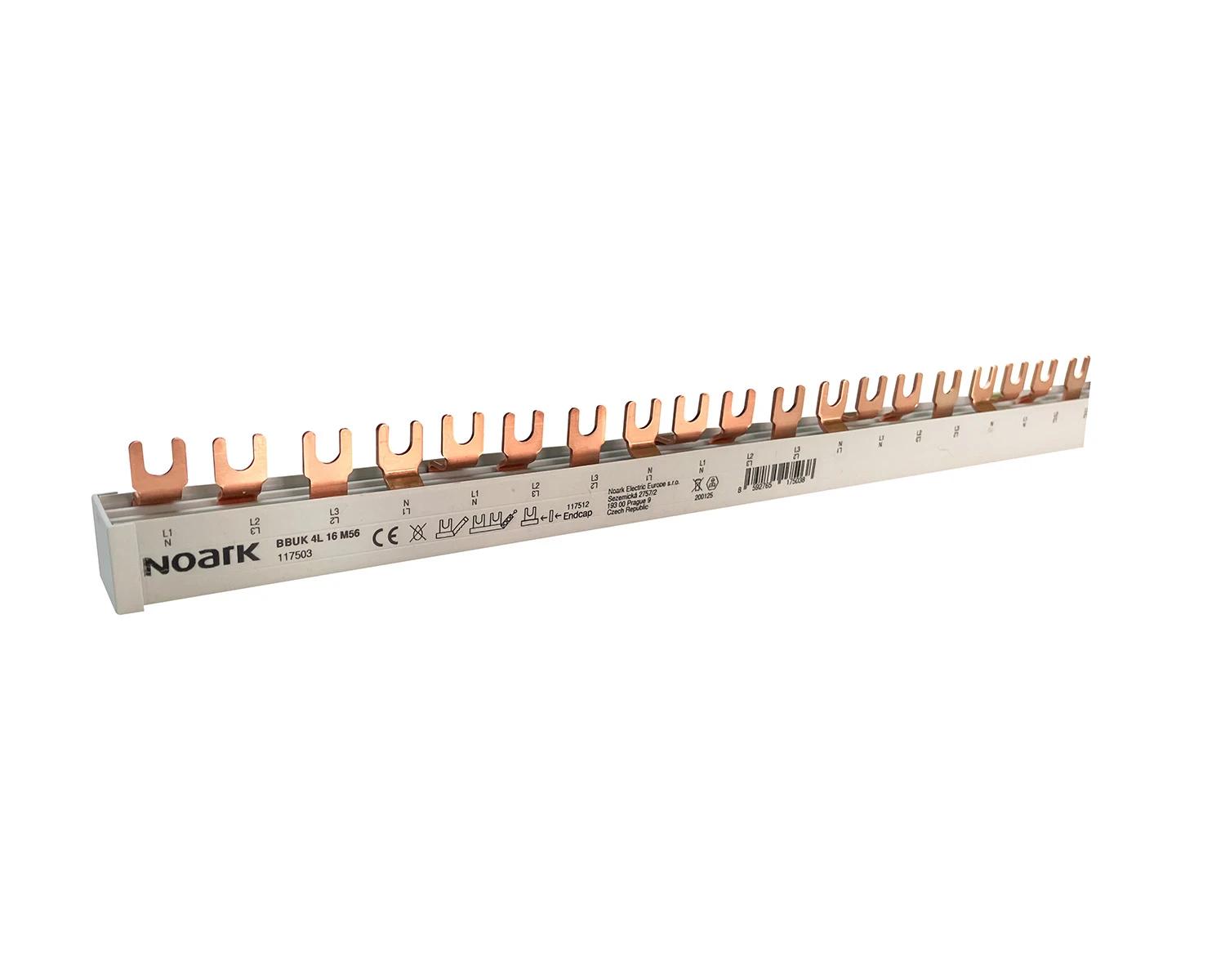

4 phase U style busbar with 54 modules 10mm2 section
| Number of phases | 3 |
| Number of poles | 4 |
| Suitable for number of devices | 54 |
| Pitch dimensions | 18 |
| Cross section [mm²] | 10 |
| Length [mm] | 974 |
| Number of modular spacings | 54 |
| Rated permanent current Iu [A] | 63 |
| Type of electric connection | Fork |
| Insulated | Ano |
| Max. rated operation voltage Ue [V] | 400 |
| Suitable for devices with N-busbar | Ano |
| Suitable for devices with auxiliary switch | Ne |
